200′ Bow Truss, Parker, CO
Posted by admin No Comments on 200′ Bow Truss, Parker, CO Projects

200′ Bow Truss, Parker, CO

This Excel Pedestrian Bridge is 200’ long x 10’ wide and has a lifting weight of more than 50 tons. It’s a true bowstring truss made of self-weathering corrosion resistant steel, and is equipped with a powder coated wire mesh safety system. The pedestrian bridge is designed for an H-5 (10,000 lb.) vehicle load in addition to the 90 PSF uniform live load. It was delivered to Parker, Colorado in 3 pieces, and once erected, the 117,000 lb. pedestrian bridge was set on the abutments in only 20 minutes!

Specs:
• 200’ x 10’ Bow Truss
• Bridge Lifting Weight 117,000 lb.
• Uniform Live Load 90 PSF
• Vehicle Load: H-5 (10,000 lb.)
• Powder Coated Wire Mesh Safety System

Timelapse Installation Video:

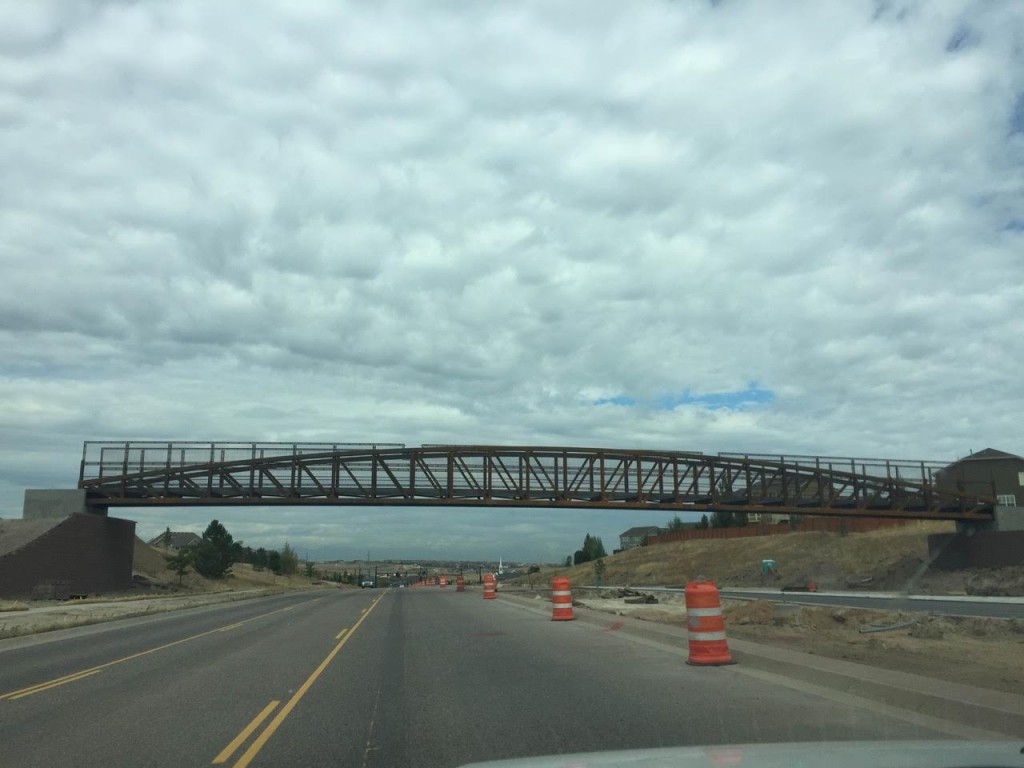

200-foot-bow-truss-parker-az-2

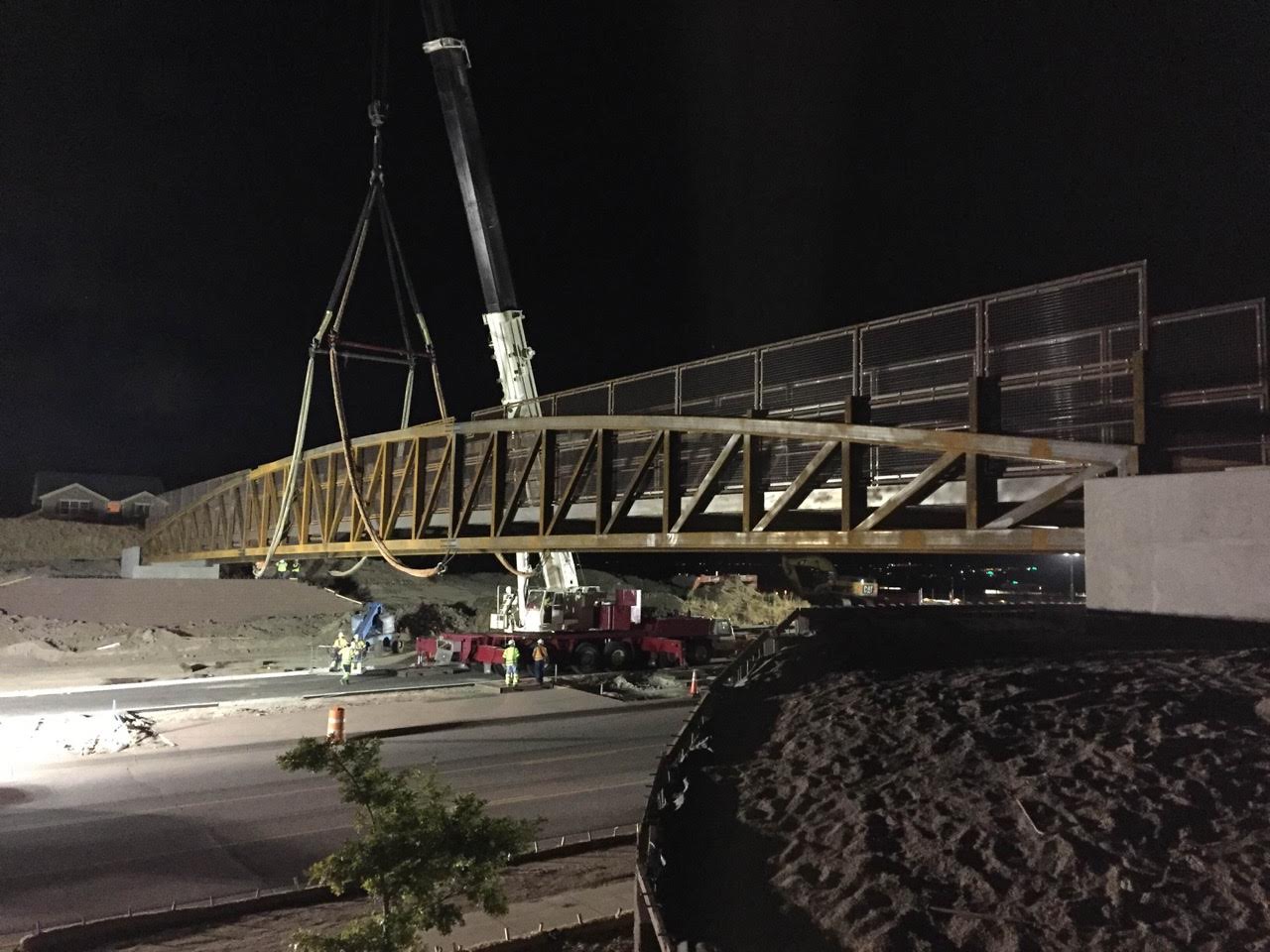

200-foot-bow-truss-parker-az-1
