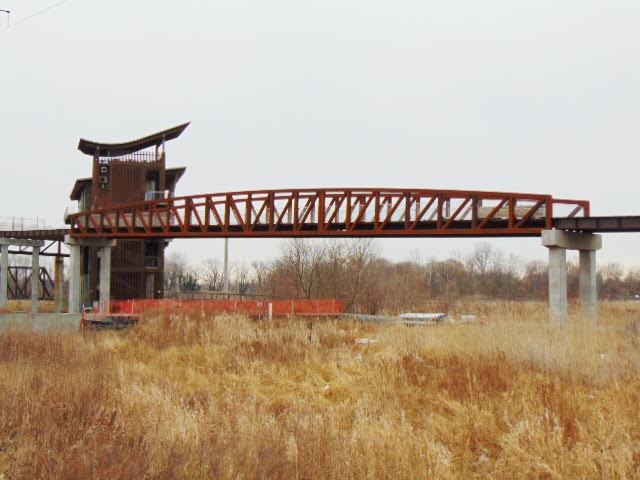

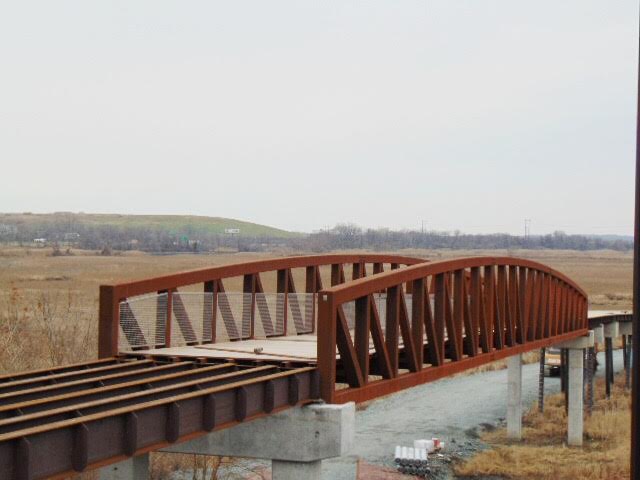

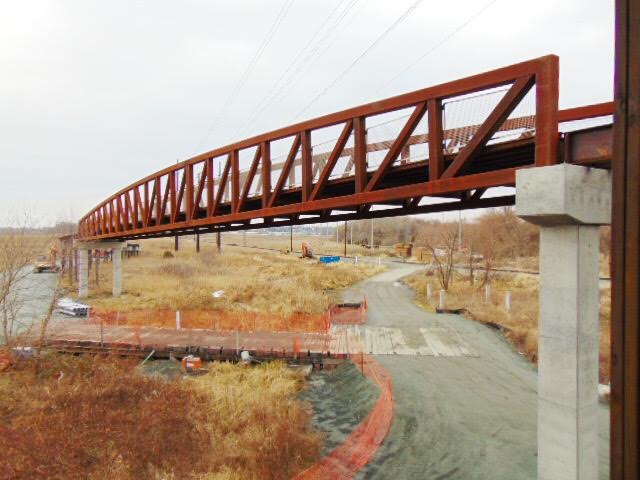

This Excel Pedestrian Bridge is 185’ long x 14’ wide and has a fully assembled lifting weight of more than 150,000 lb. It’s a Modified Bow truss made of self-weathering corrosion resistant steel, equipped with an IPE hardwood deck, and has a custom woven mesh safety system. The pedestrian bridge is designed in accordance with AASHTO LRFD, with an H-10 (20,000 lb.) vehicle load in addition to the 90 PSF uniform live load. This prefabricated pedestrian bridge was delivered to Dover, Delaware in 6 pieces. Once assembled, the 75 ton steel pedestrian bridge was quickly hoisted into place. The superstructure’s design & fabrication were done in accordance with the Delaware DOT – satisfying all requirements!”
Specs:
• Size: 185’ x 14’ Modified Bow Truss
• Bridge Lifting Weight: 150,000 lb.
• Uniform Live Load: 90 PSF
• Vehicle Load: H-10 (20,000 lb.)
• Design Criteria: AASHTO LRFD & Delaware DOT
